Chemical CRM

intro

Hello everyone!

Thank you for purchasing solution. If you have any questions that are beyond the scope of this help file, please feel free to email via my user page contact form here. Thanks so much!

Quick Start Guide

Setting up Chemical CRM is very simple. You will receive the following files after extracting project compressed file:

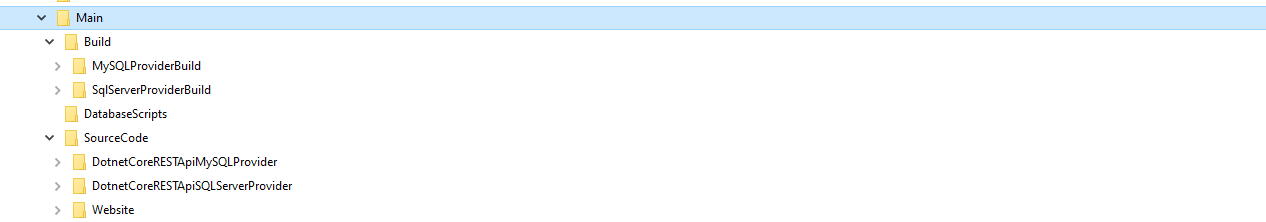

Folder Structure
  • Build: It contains the build files for both SQL Server and MySQL Provider which you can directly deploy to your server.
  • DatabaseScripts: This folder contains initial scripts for both the database providers.
  • Souce Code: It contains the complete source code for front-end and REST API. There are different REST API folders for SQL Server and MySQL database providers.

Prerequisites

.NET CORE 5 SDK and VISUAL STUDIO 2019, SQL SERVER or MySql 8 +

.Net Core Installation

Installation steps

  • Based on your requirement choose the SQL or MySQL API in respective folder of source.
  • Open solution file ChemWebsite.sln from .Net core folder into visual studio 2019.
  • Right click on solution explorer and Restore nuget packages.
  • Change database connection string in appsettings.Development.json in ChemWebsite.API project.
  • Open package manager console from visual studio menu --> Tools --> nuget Package Manager --> Package Manager Console
  • In package manager console, Select default project as ChemWebsite.Domain
  • Run Update-Database command in package manager console which create database and insert intial data.
  • From Solution Explorer, Right click on ChemWebsite.API project and click on Set as Startup Project from menu.
  • To run project Press F5.

Angular Installation

Prerequisites

Although Chemical CRM can be run without any development experience, it would be much easier if you already have some experience. The following instructions allow you to run a local copy on your machine.

Install tools

If you have not yet installed nodejs, please Download and globally install nodejs : https://nodejs.org
Note: download Recommended For Most Users version

A detailed instruction on how to install NodeJS is available here.

Note: Make sure you have Node version >= 4.0 and NPM >= 3 . Also globally installed typescript.

Installing Angular-CLI globally is as simple as running this simple command: npm install -g @angular/cli

After the tools is installed, go inside of the Angular directory and run below command to install dependencies:

Run npm install to install node dependencies defined in package.json.

Running local copy

To run a local copy in development mode, replace REST API URI (apiUrl) variable in environment file inside src --> environments -->environment.ts

execute ng serve and go to http://localhost:4200 in your browser.

To run the local copy in production mode and build the sources, execute ng build --prod. This will builds a production version of the application. All html,css and js code is minified and put to dist folder. The contents of this folder you can to put to your production server when publishing the application.

Hosting

Prerequisites

In order to host, you need the .Net 5 Runtime in your server.

You also need SQL Server or MySQL database provider.

Create Database

Create Database in SQL Server or MySQL Server and run the initial script from DatabaseScripts Folder.

Change Connection String

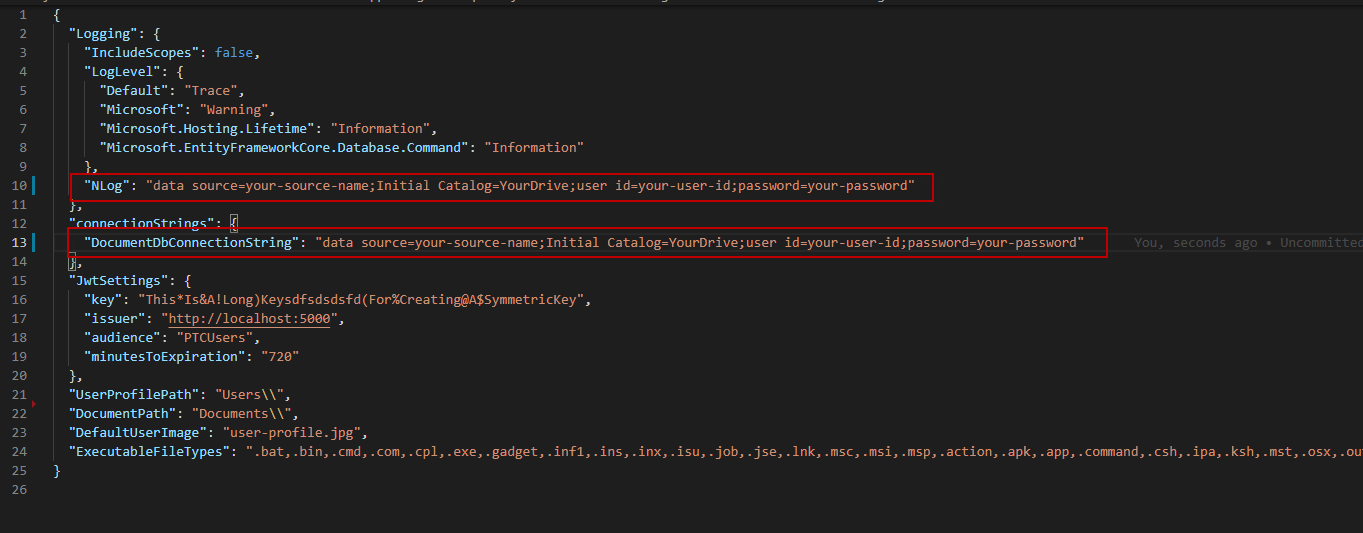

Change the connection in appsettings.Development.json file as describe as below image:



Host on IIS Server:

  • Open the IIS
  • Add New Website
  • Enter you site name
  • Copy Build\MySQLProviderBuild or Build\SqlServerProviderBuild folder path to physical Path.


Host on Linux Server:

Configuration

  • Users:
    In the initial Script two user has been created as below: [email protected] is Admin user and using this account you can add more users.
  • SMTP Settings:
    In order to send email You need to configure the Default SMTP Settings under the Admin Area.

.Net Core Project Structure

The project structure is as follows:

ChemWebsite.sln/                        * Projects Solution
│   │
│   ├──ChemWebsite.API                  * REST API Controller, Dependancy configuration, Auto mapper profile
│   │
│   ├──ChemWebsite.MediatR              * Command handler, Query handler, Fluent API validation
│   │
│   ├──ChemWebsite.Repository           * Each entity repository
│   │
│   ├──ChemWebsite.Domain               * Entity framework dbContext
|   |
│   ├──ChemWebsite.Common               * Generic repository and Unit of work patterns
│   │
│   ├──ChemWebsite.Data                 * Entity classes and DTO classes
│   │
│   ├──ChemWebsite.Helper               * Utility classes
